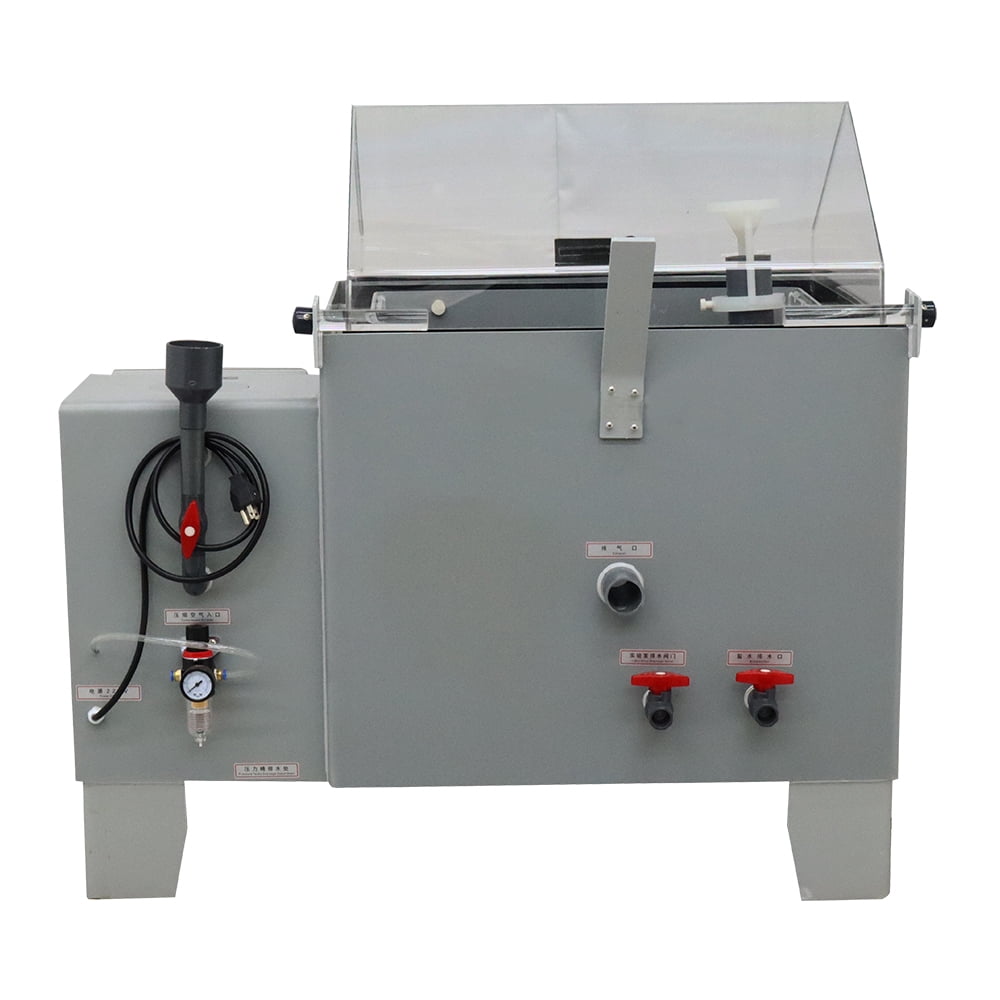

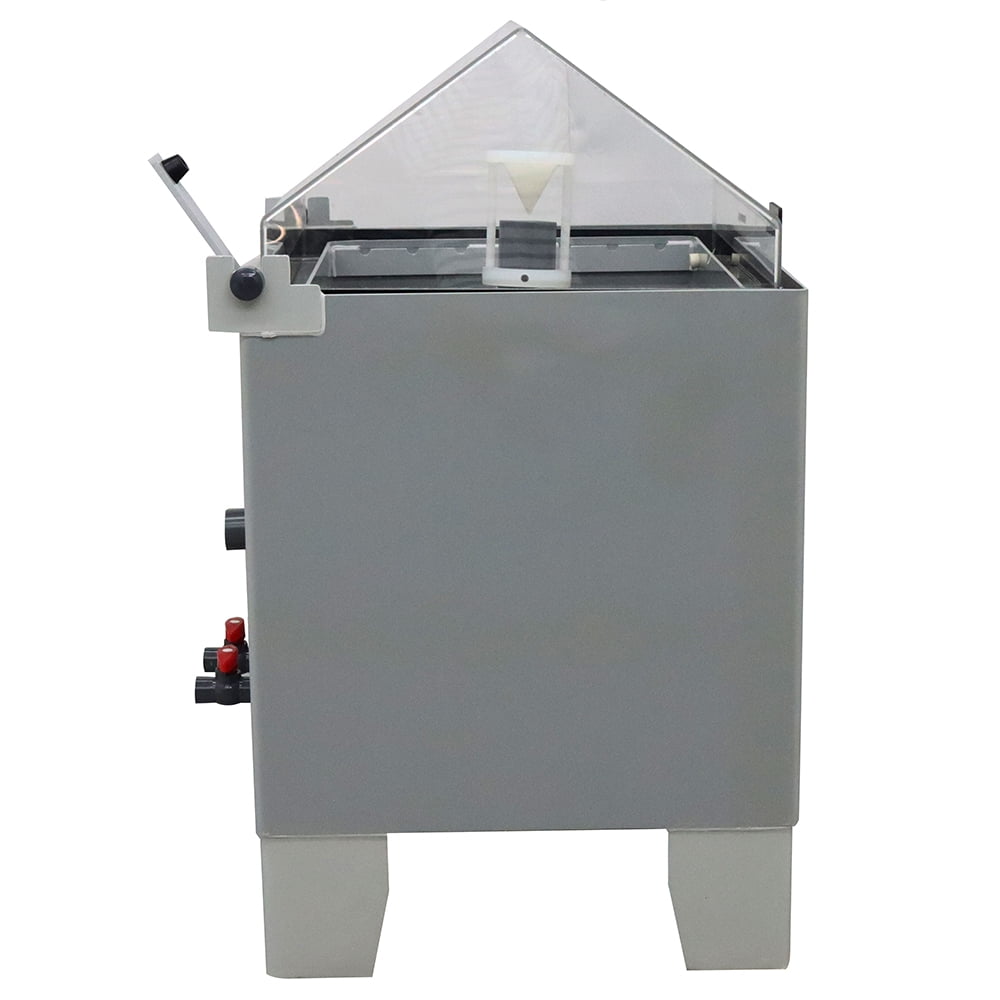

EQCOTWEA Salt Water Spray Chamber 110L for ASTM b117 Corrosive Fog Test

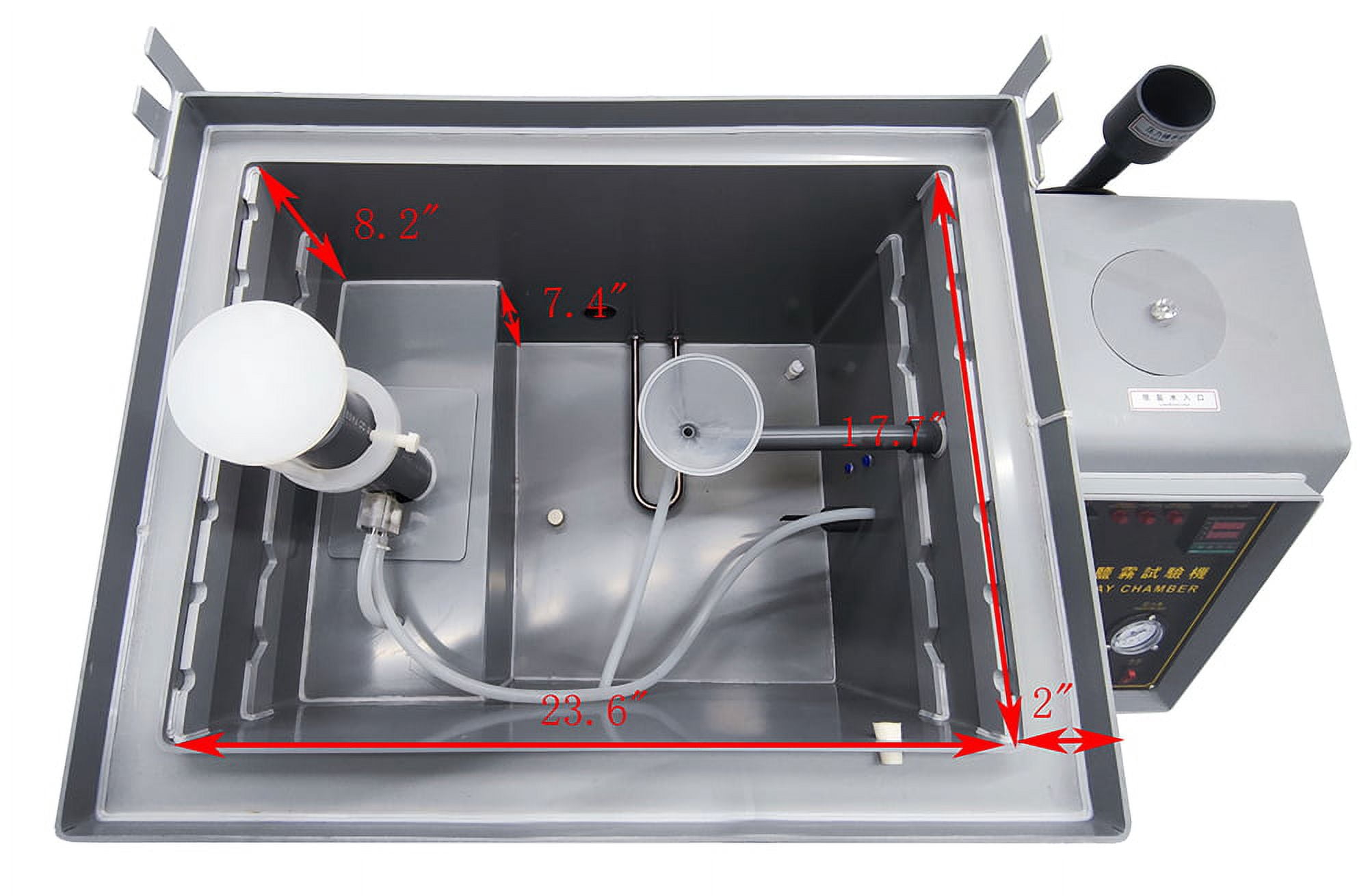

Parameters:<br> Voltage: 110V<br> Laboratory volume: 110L<br> Inner size: 23.6*17.7*15.7 inch (600*450*400mm)<br> Outer size: 40.5*22.4*38.5 inch (1030*570*980mm)<br> Spray method: continuous<br><br>Equipment:<br> ü&nbsp;The solution should not contain grease and dust, so you have to prepare an&nbsp;air cleaner.<br> ü&nbsp;Spray liquid should be collected at least 16 hours,&nbsp;an average per hour can&nbsp;be collected 2ml to 1ml solution. Use the final average&nbsp;to represent the&nbsp;amount of spray.<br> ü&nbsp;The concentration&nbsp;of the Sodium Chloride Solution&nbsp;should be maintained&nbsp; at&nbsp;40~60g/L.<br> ü&nbsp;The temperature of the pressure barrel should be kept in 47+1 degree,&nbsp; temperature of the brine barrel should be kept in 35+1 degree.<br><br> Sample placement:<br> If you need to test many pieces,&nbsp;make sure that every major surface can be detected by salt fog at the&nbsp; same time.<br> Permutation of samples, the spray&nbsp; should be free to drop on all the test pieces, preventing the situation&nbsp;of blocking the spray.<br> &nbsp;Each sample cannot be in contact&nbsp;with each other.<br> &nbsp;Salt spray can’t drop from one test&nbsp;piece to another one.<br> &nbsp;Sample identification mark should be&nbsp;marked on&nbsp;the bottom of the test piece.<br><br> Spray method:<br> Voltage: 110V<br> Adopting bernoute principle to absorb brine and then atomize, the degree of atomization is even, no blocking phenomenon of crystallization, can ensure the standard of continuous test.<br> Nozzles: made of special glass nozzles, the size of the spray can be adjusted.<br> Adopt the direct heating method, the heating speed is fast to reduce the standby time, when the temperature reaches ON. OFF switching, accurate temperature, less power consumption.(heating tube is made of high corrosion resistance heating system: titanium tube).<br><br> Item&nbsp;included(239015):<br> 1* Salt Spray Testing Chamber 110V

• WIDE RANGE OF APPLICATIONS.: It's used to test the corrosion resistance of the electrode posited coating of many kinds of metallic materials.Use the salt spray test machine to spray the Sodium Chloride Solution to the surface of electric coating to achieve the purpose of detection.
• LARGE TEST SPACE：Laboratory volume: 110L，Inner size: 600*450*400mm，Outer size: 1070*680*1020mm
• LONG TEST TIME：Test time up to 9999s to meet your more needs.
• MEET THE MANY TEST STANDARDS：GB/T 2423. 17-1993，GB/T 2423. 18-2000，GB/T 10125-1997，IEC68-2-52 1996，ASTM. B117-97，GB. 10587-89，IEC68-2-11，JIS H8502，CNS. 4158.
• SPRAY FLOW CAN BE ADJUSTED： Spray flow rate adjustment 1-2m1 (m1/8ocm'/nh) (16-hour average). Spray mode is continuous type.
